RTX210

Description

Manufacturer : Ray Tech (Malaysia) Sdn Bhd

Product Features : All X-ray machines manufactured by Raytech Malaysia Sdn Bhd meet the FDA-CDRH Regulation CFR 21 1020.40. The FDA – CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2″from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards

Application Fields

Reels	Accuracy
01005	99.99%
0201	99.99%
0402	99.99%
0603	99.99%
0805	99.99%
1206	99.99%

Others Components	Accuracy
Transistors	99.99%
Bulks	99.99%
ESD Packages	99.9%

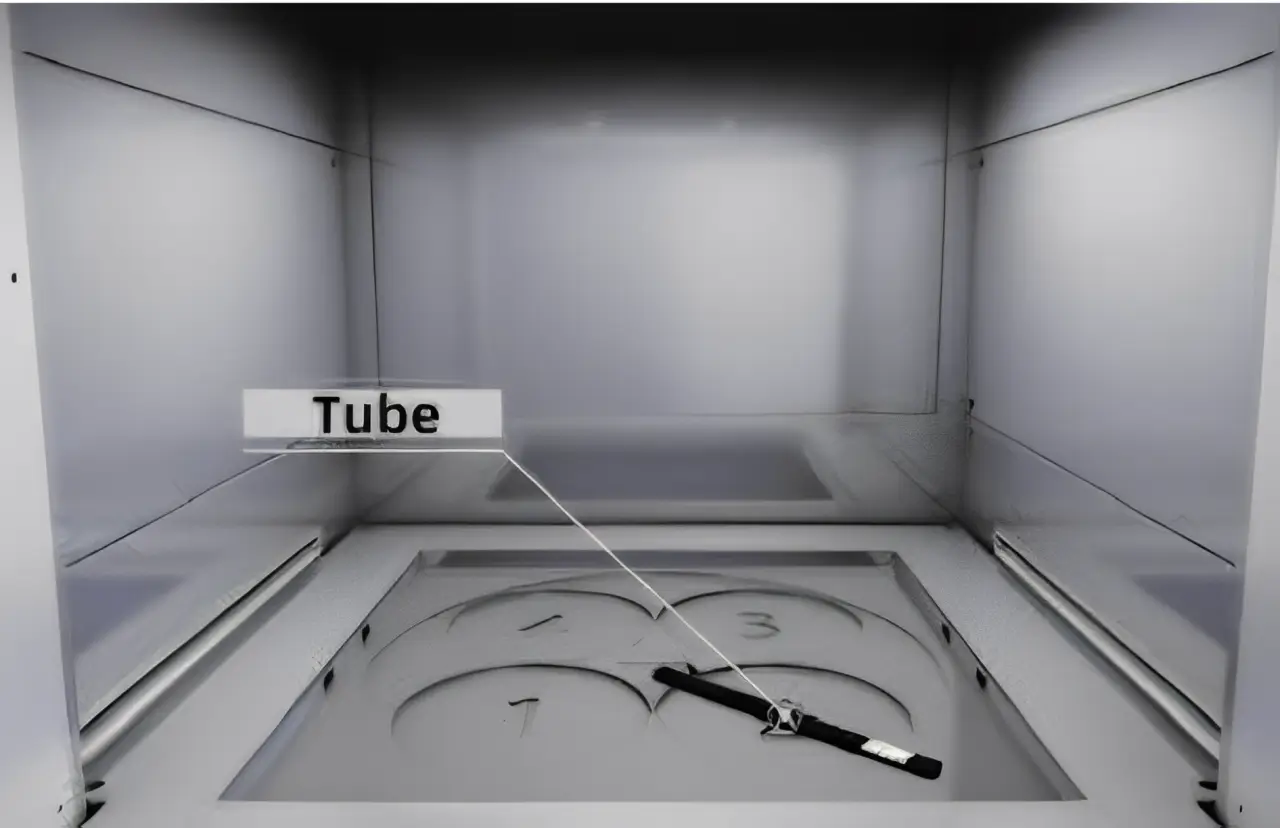

Tubus	100%
JEDEC TRAY	100%
Other Resistance & Capacity	99.99%

Functions and Features

Fingerprint Access Management and Real-time Monitoring of Radiation

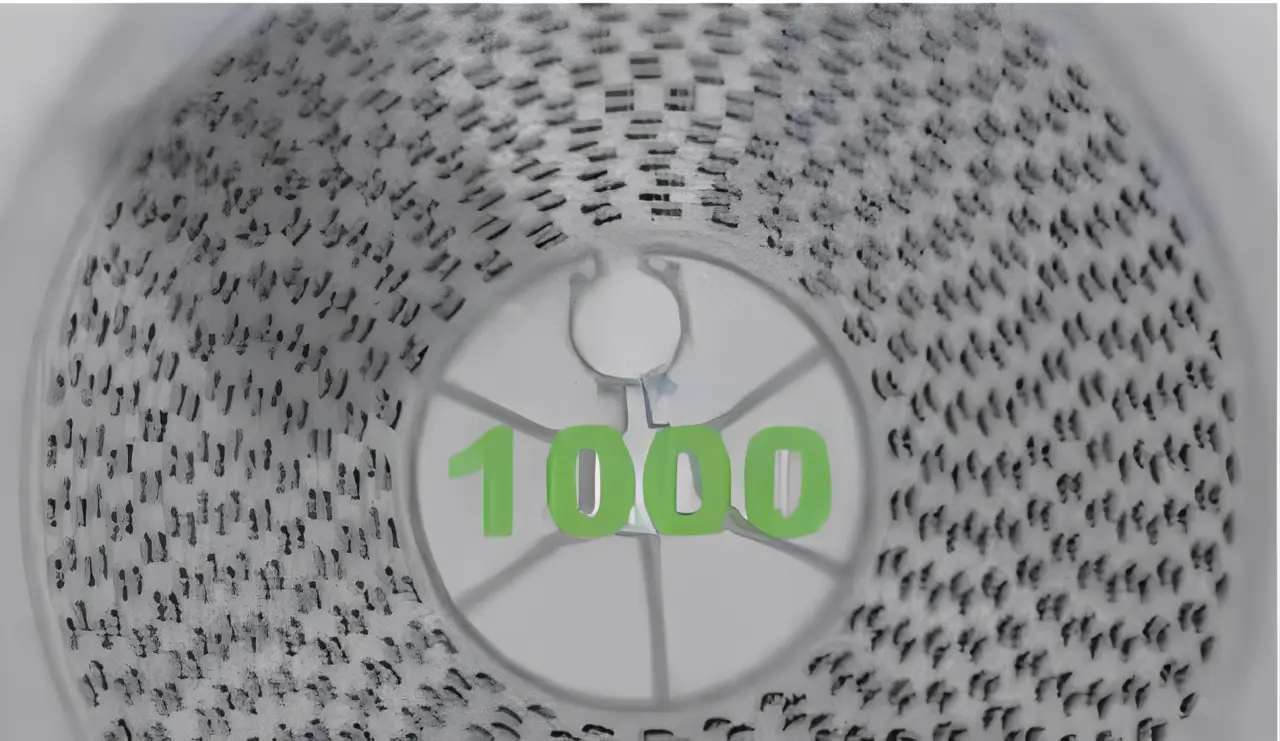

AI Technology for Counting Different Components

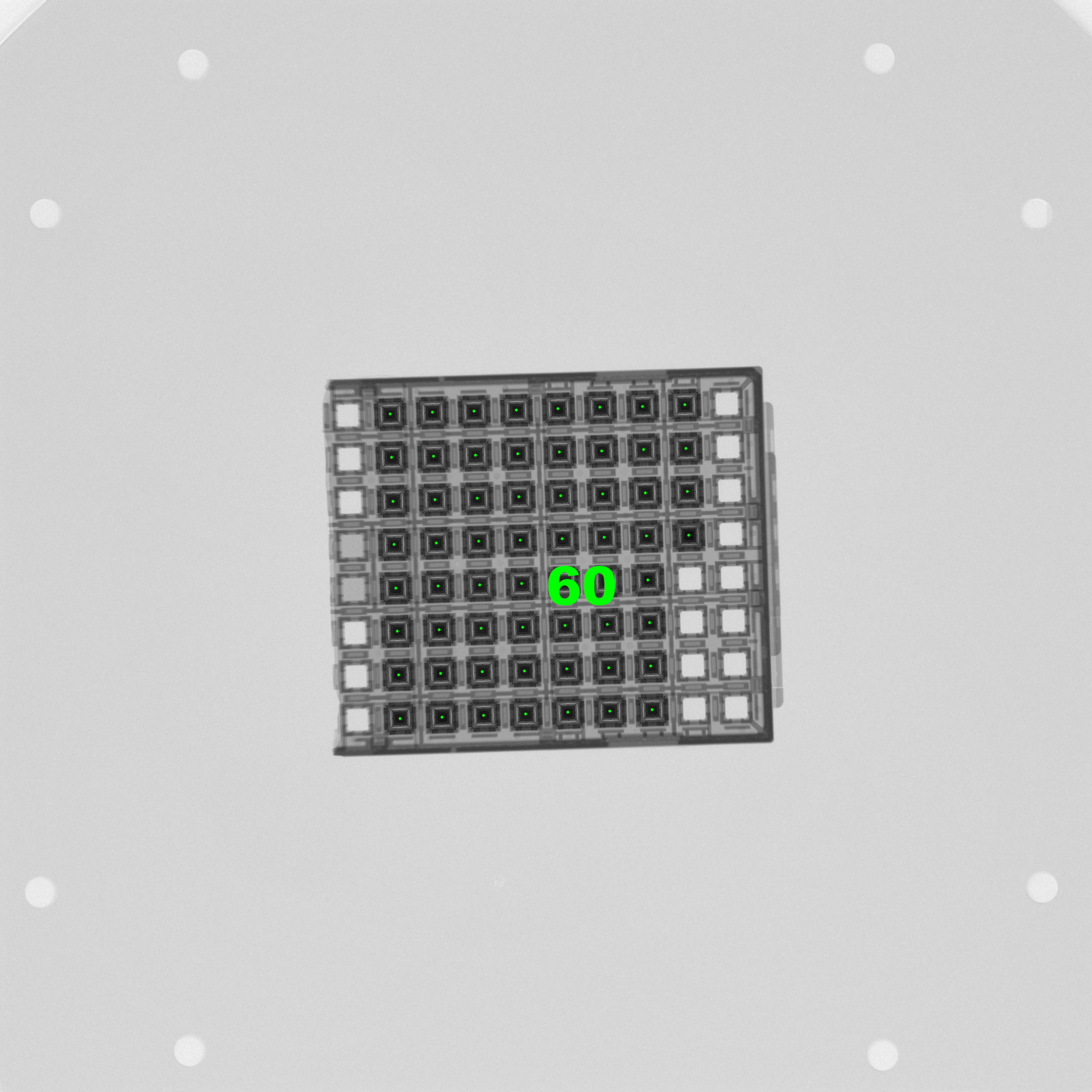

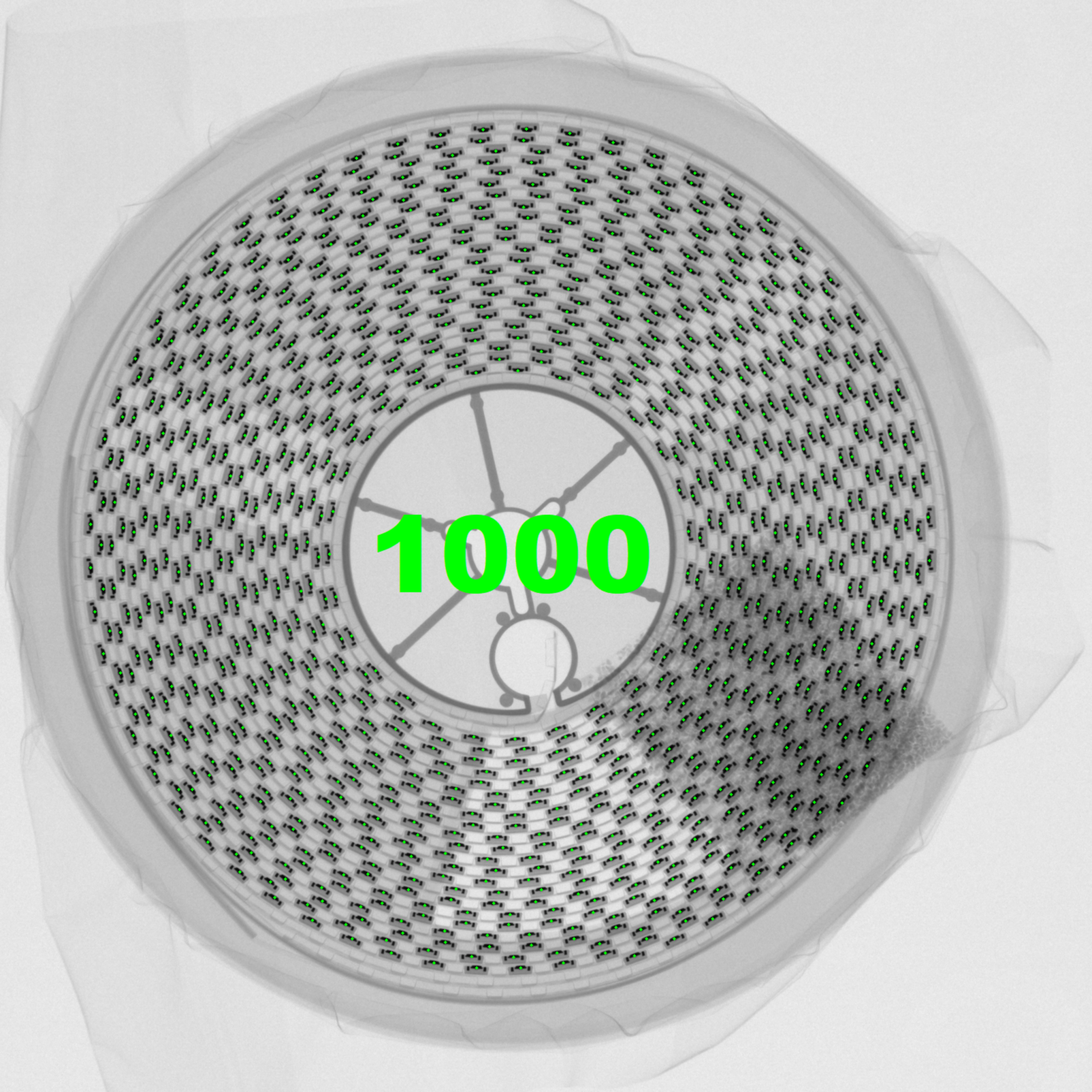

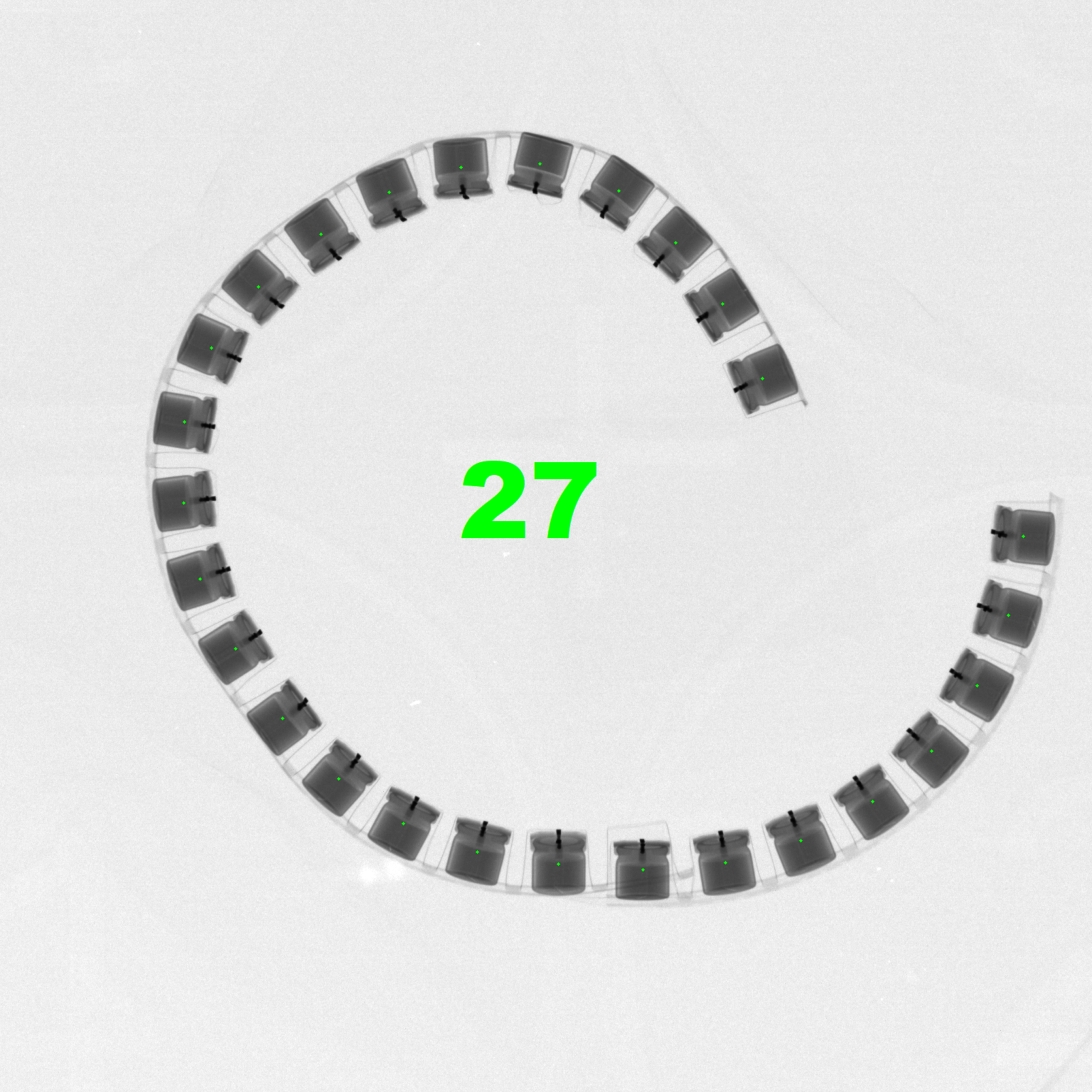

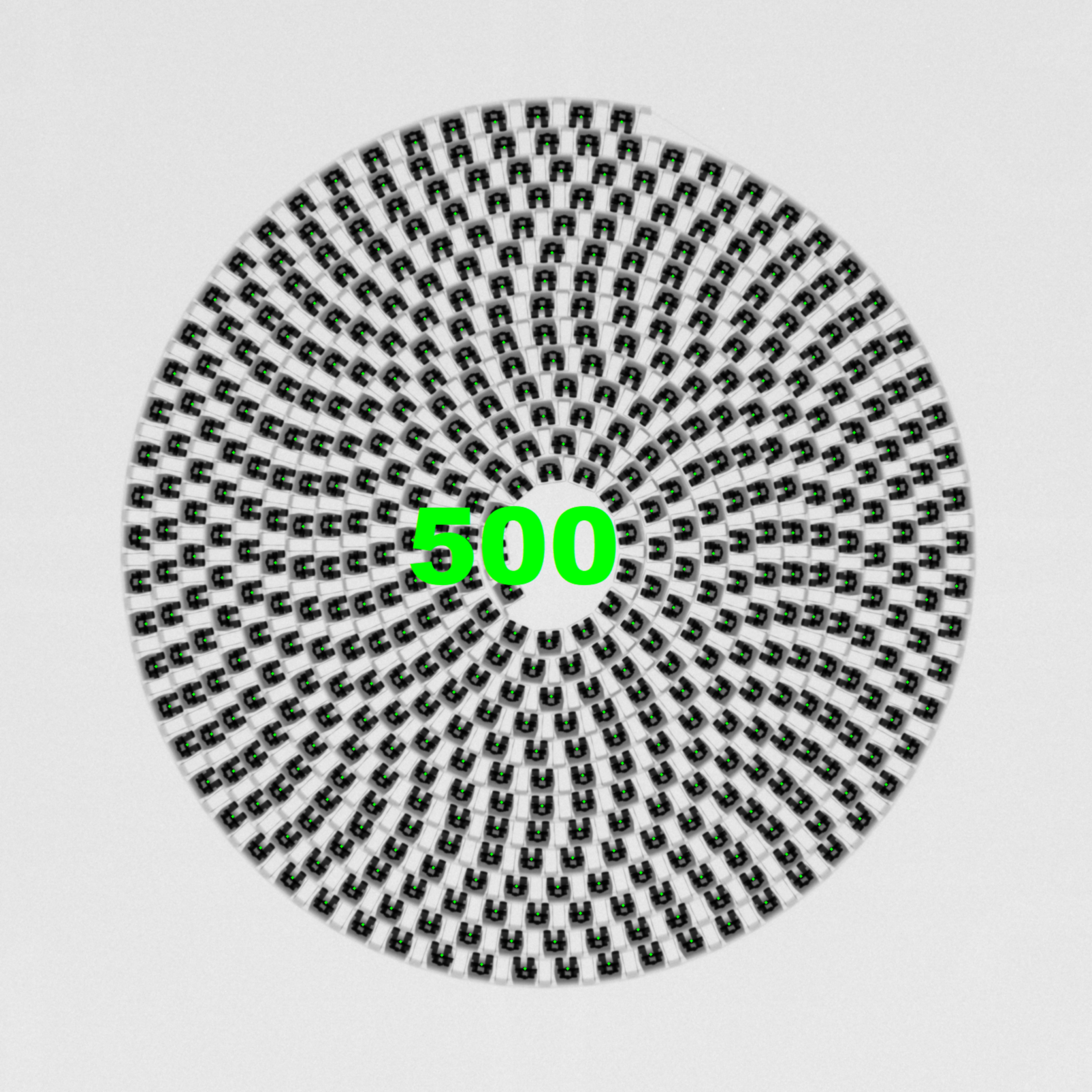

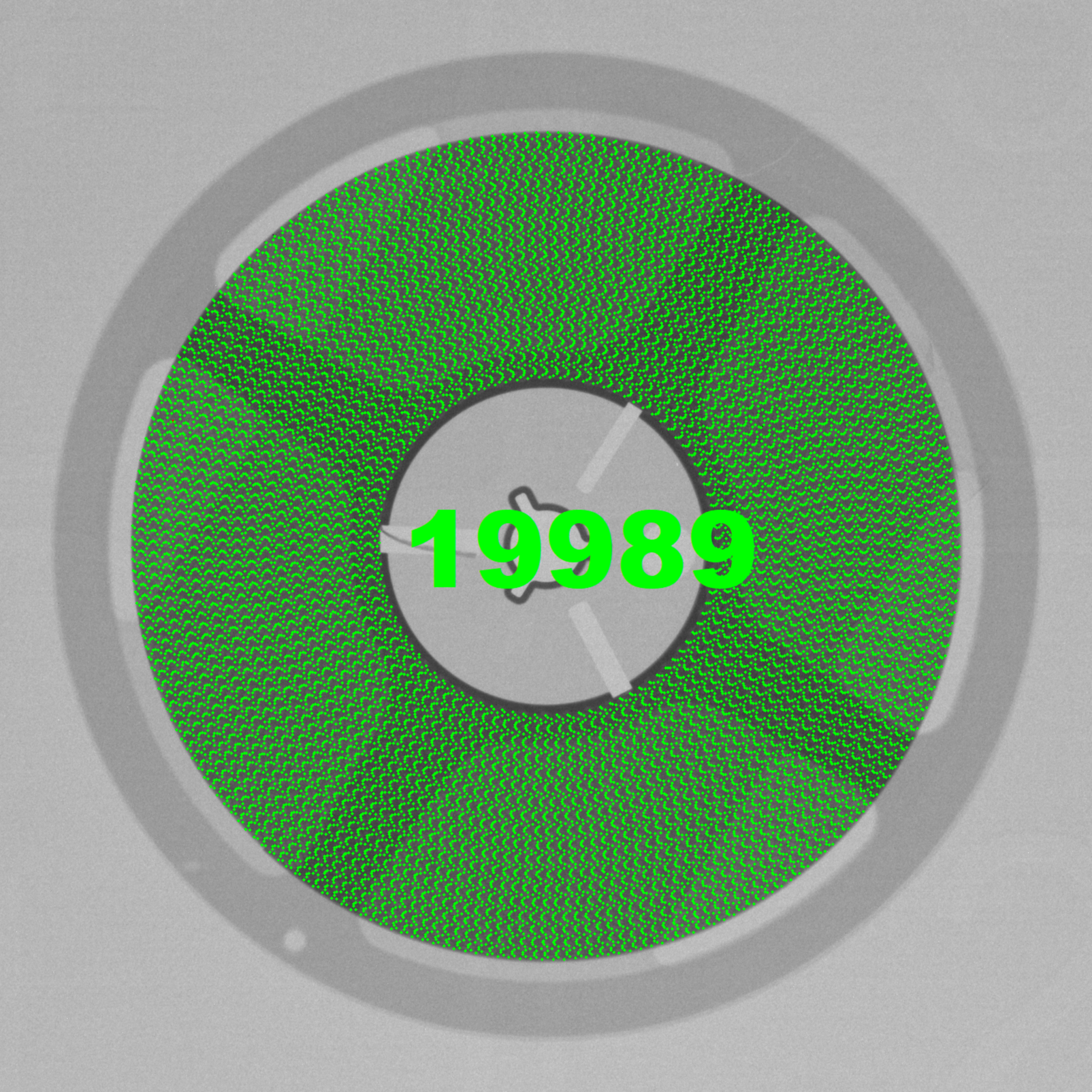

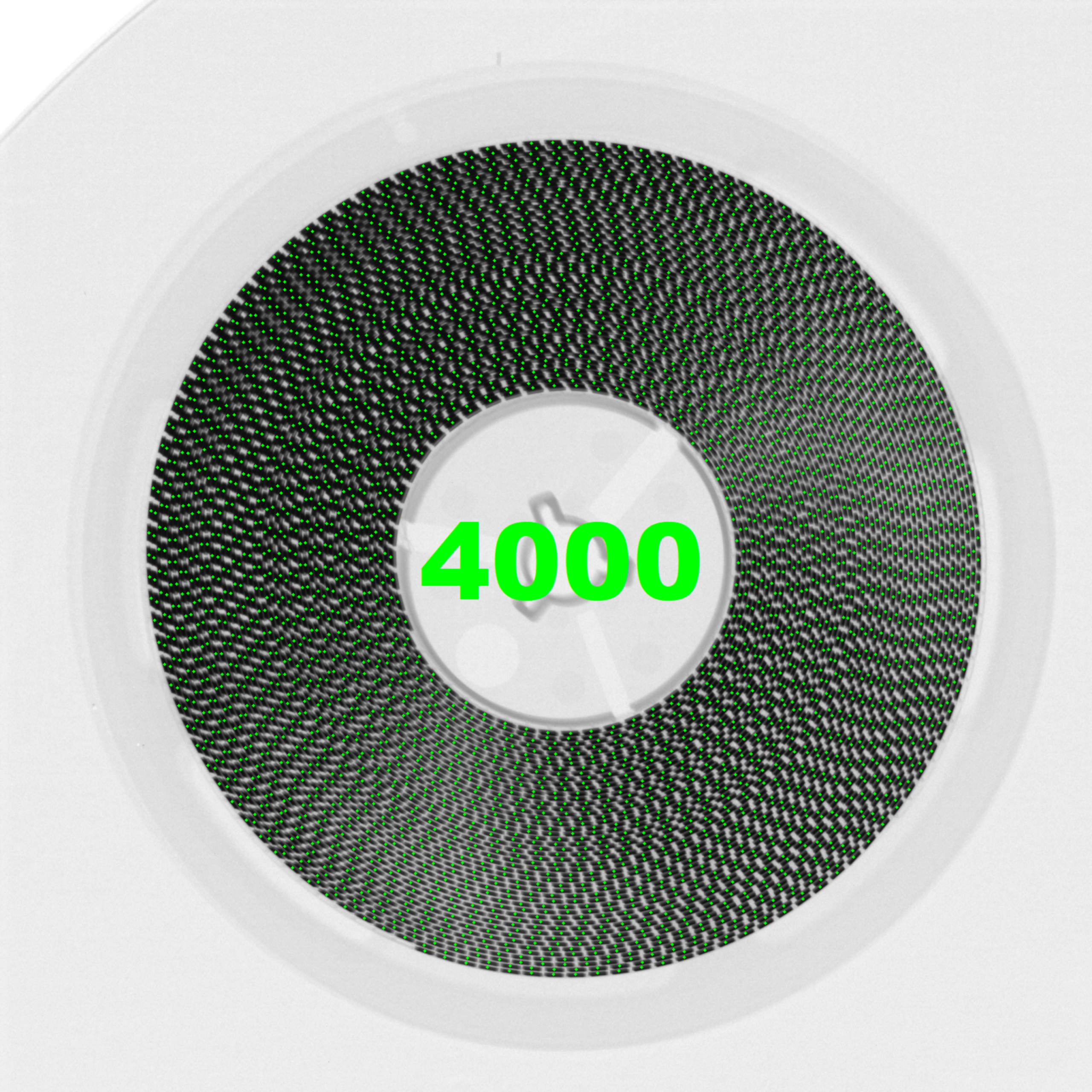

Inspection Image

System Summary
Footprint	800(W)×800(D)×1900(H)mm
Plywood Packing Size	1150(W)×1100(D)×2150(H)mm
Machine Weight	780 kg
Packing Weight	1000 kg
Power Supply	AC 110/220V, 50/60Hz
Power Consumption	Max. 1.5 KW

X-Ray Tube
Tube Type	Sealed
Current	Max. 700 µA
Voltage	80 kV
Focus Spot Size	0.03 mm

Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	139 µm
Effective Inspection Area	430×430mm
Pixel Matrix	3072×3072 pixel
Frame Rates	2 fps
AD Conversion	16 bits

Inspection Ability

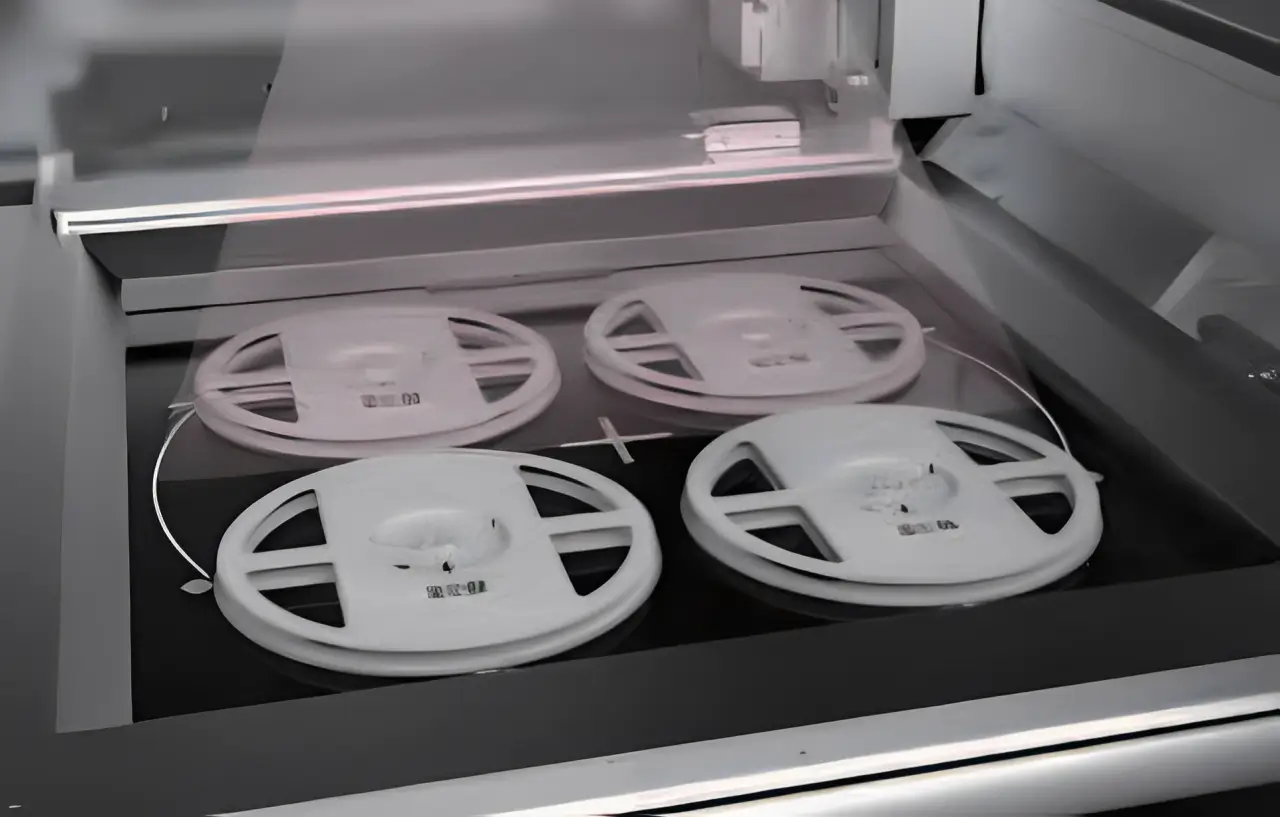

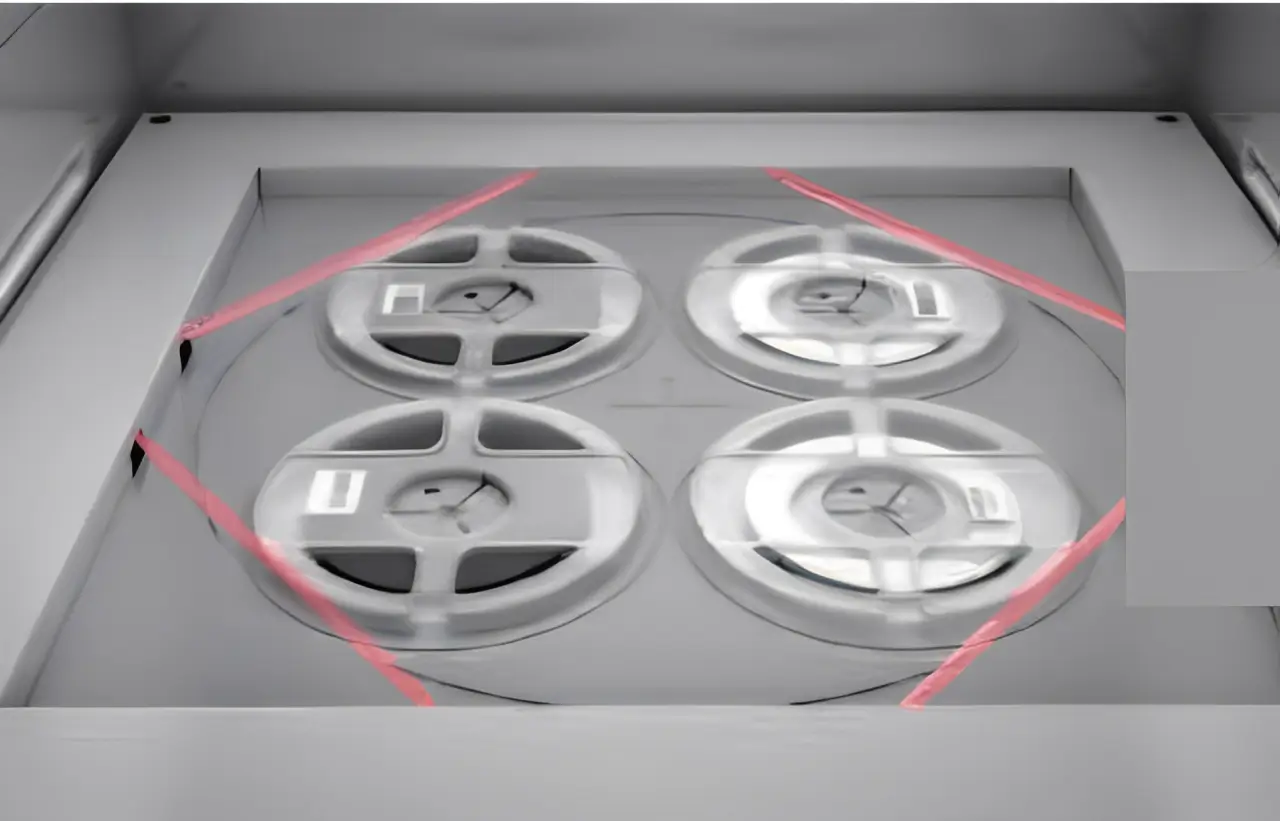

Tape & Reel size	7”-17”
Scan Height	≤ 88mm
Inspection Min. Component	1005
Inspection Accuracy	99.99%
Inspection Speed	<10s (Tape & Reel 7”-17”) <10s (7”*4 Tape & Reel)

Industrial PC
Monitor	24” FHD LCD Display
System OS	Windows 10 64bit
Hard Disk	256G (SSD) + 1T (HDD)
RAM	16 GB
CPU Model	Intel i7 Processor
Support	Connection with MES, ERP and WMS Intelligent Storage System

Other Features

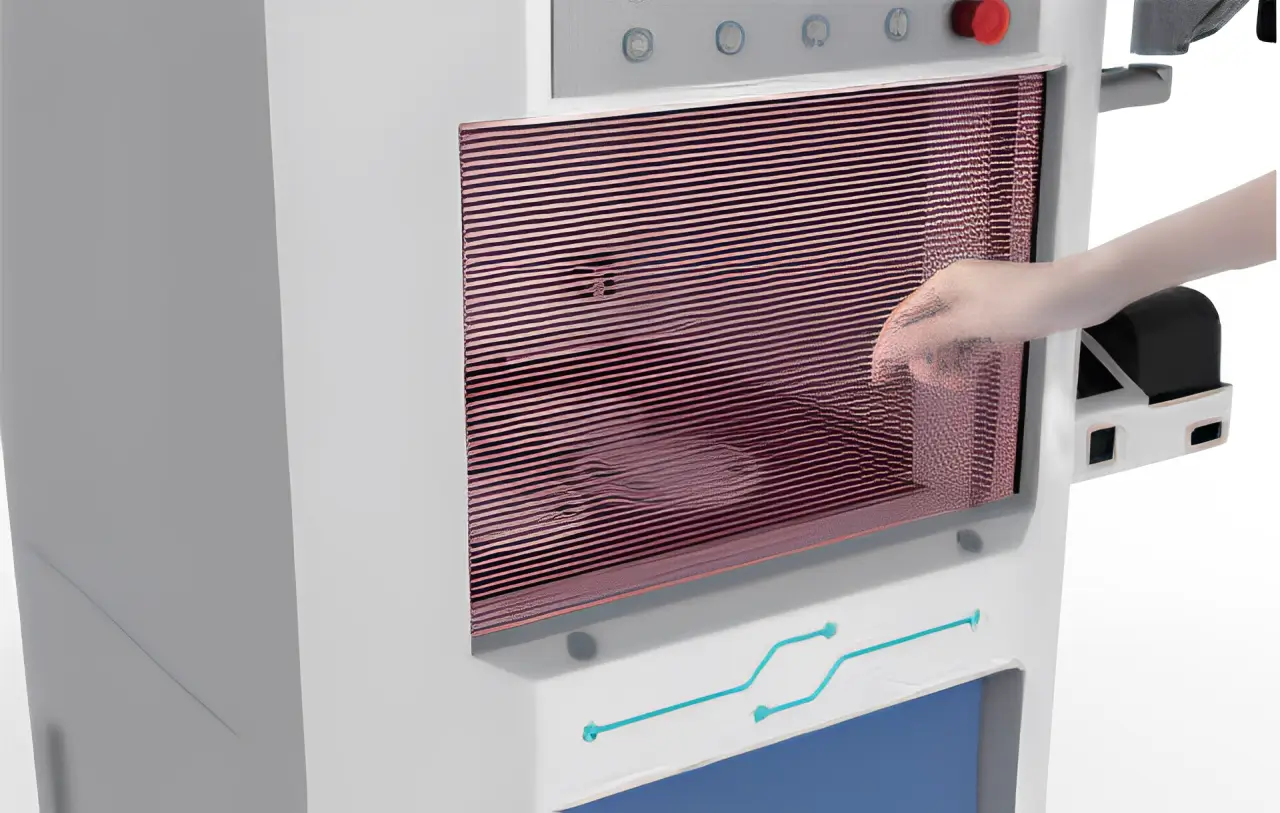

Door Open	Auto-door, Anti-Pinch
Feeding Method	Manual

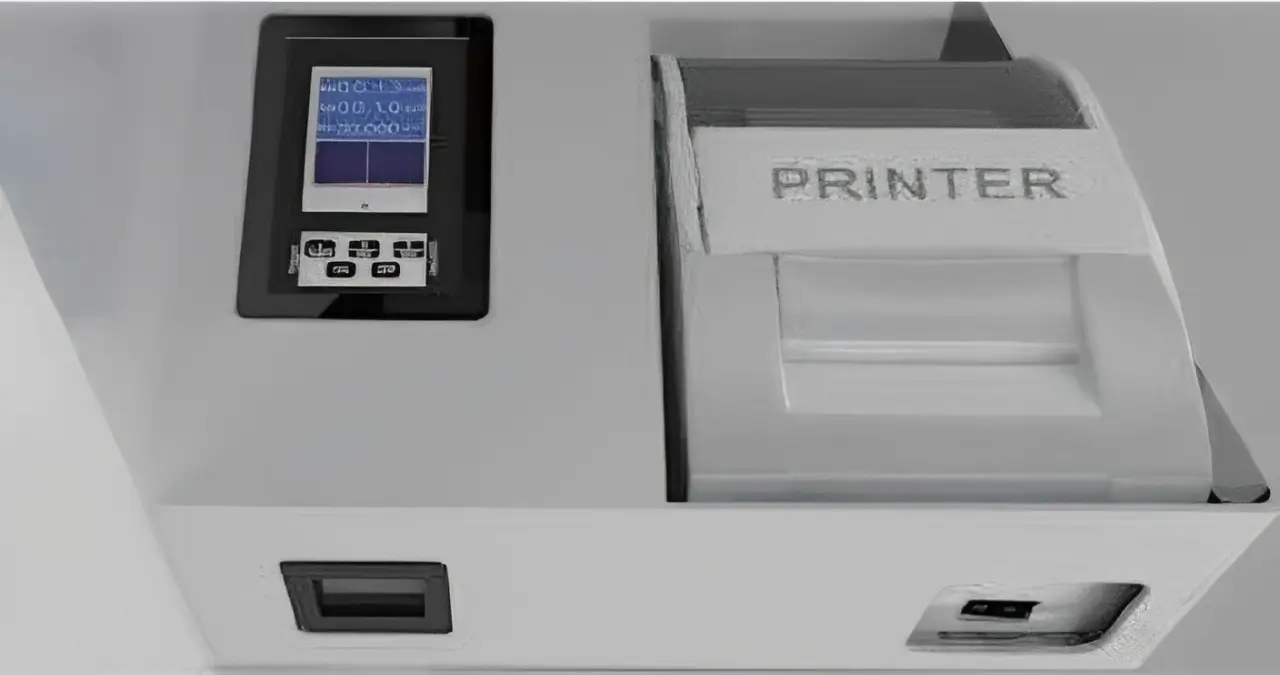

Radiation Monitoring	Safety Protection, Real-time Monitoring of Radiation
X-Ray Safety	<1µSv/h (Meets All International Standards)
Accessories	Barcode scanner, Printer, Portable Radiation Meter, Fingerprint Recognition
Authority Management	Fingerprint Access Management System, Support Password Accessing
