X-Ray inspection for IC chips, DIP dual-sided insertion components

Manufacturer : Ray Tech (Malaysia) Sdn Bhd

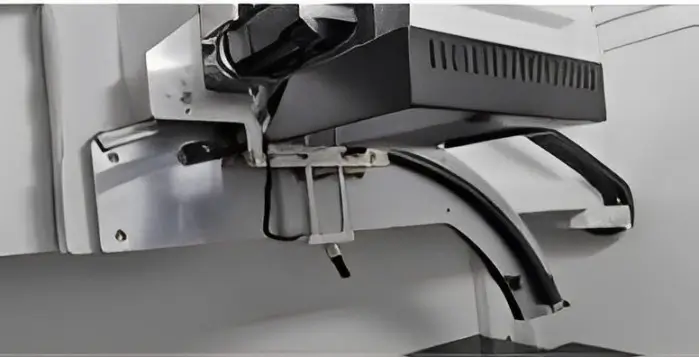

Product Features : The RTX320 is characterized by its attractive appearance, powerful functionality, and ease of operation. The system is equipped with an extra-large object stage and desktop inspection area. The imaging device supports 60° single-sided rotation tilt inspection without loss of magnification, and the small-angle X-ray source enables 60° high-definition real-time imaging. It features CNC-programmed positioning detection along with a 24-inch HD full-screen touch interface. The system also includes powerful image analysis and measurement tools, automatic void ratio calculation for solder joints, and a rotary lift control station integrated with newly developed information verification safety recognition and radiation energy monitoring systems.

Download BrochureRequest A Quote

Description

Manufacturer : Ray Tech (Malaysia) Sdn Bhd

Product Features : The RTX320 is characterized by its attractive appearance, powerful functionality, and ease of operation. The system is equipped with an extra-large object stage and desktop inspection area. The imaging device supports 60° single-sided rotation tilt inspection without loss of magnification, and the small-angle X-ray source enables 60° high-definition real-time imaging. It features CNC-programmed positioning detection along with a 24-inch HD full-screen touch interface. The system also includes powerful image analysis and measurement tools, automatic void ratio calculation for solder joints, and a rotary lift control station integrated with newly developed information verification safety recognition and radiation energy monitoring systems.

Application Fields

Functions and Features

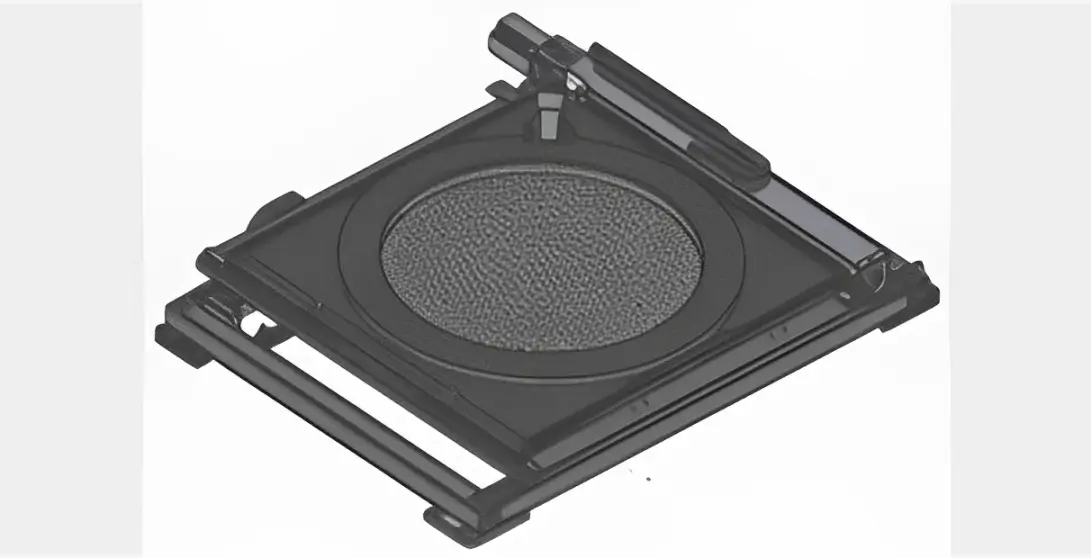

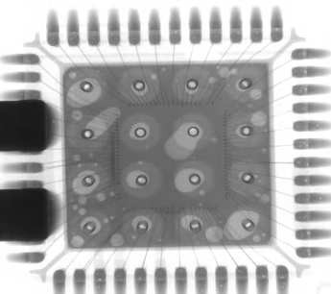

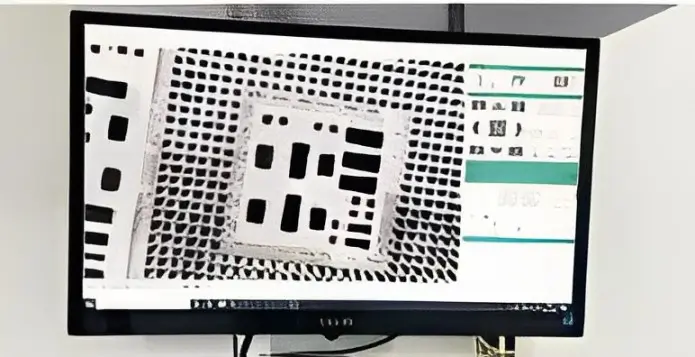

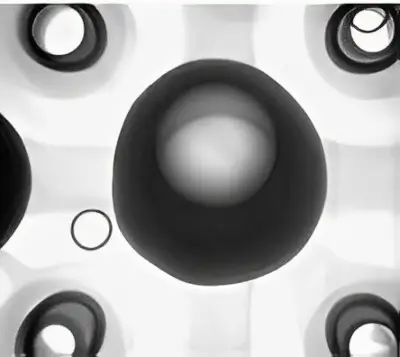

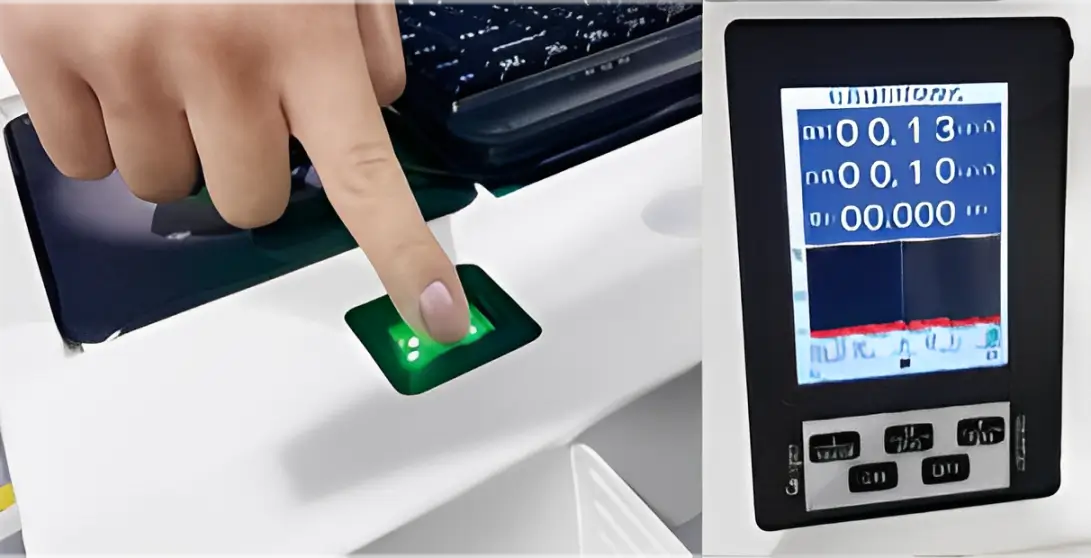

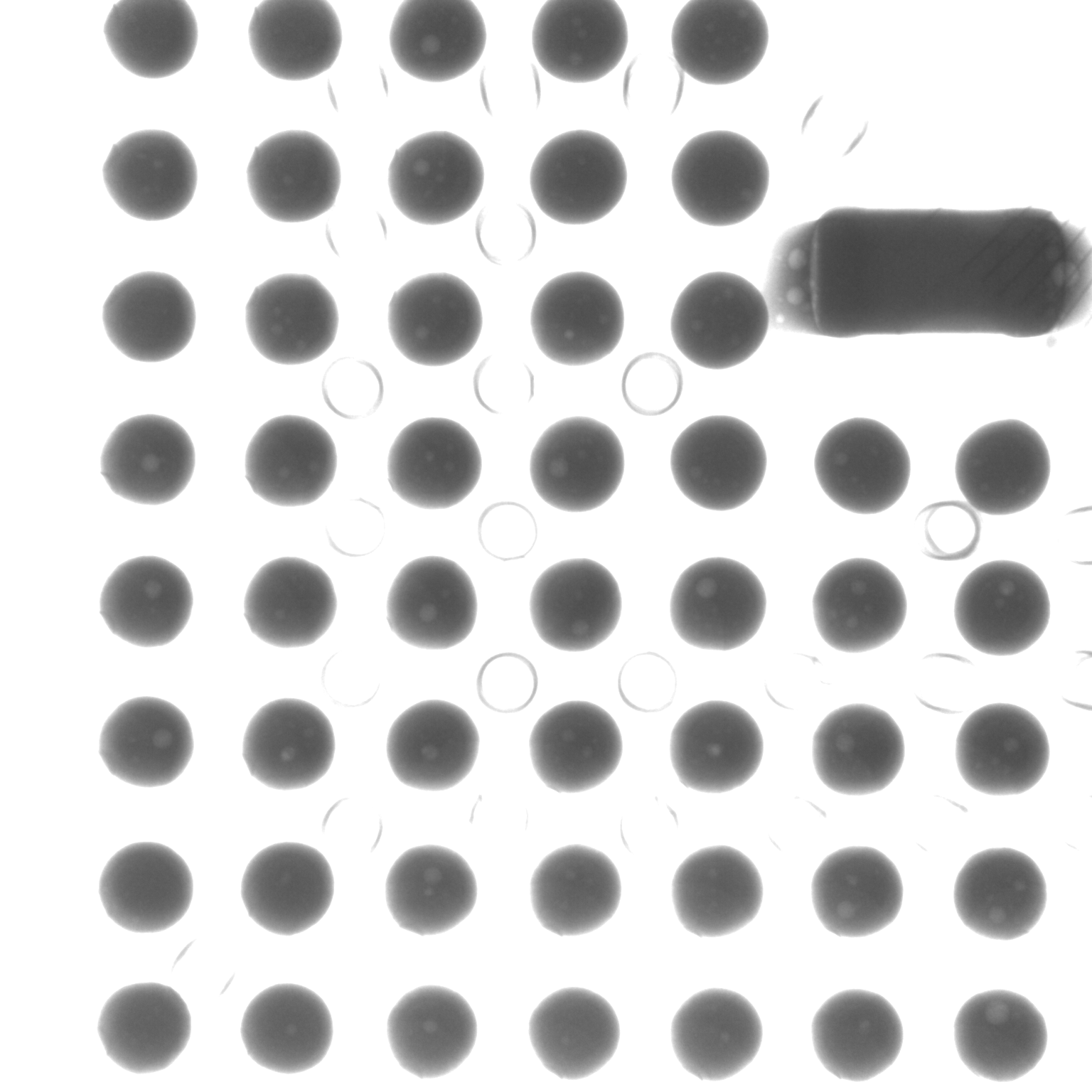

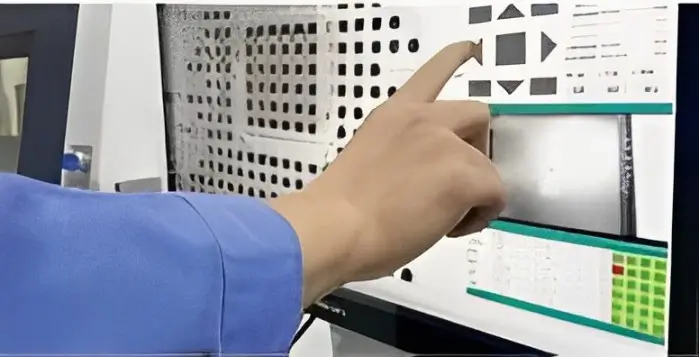

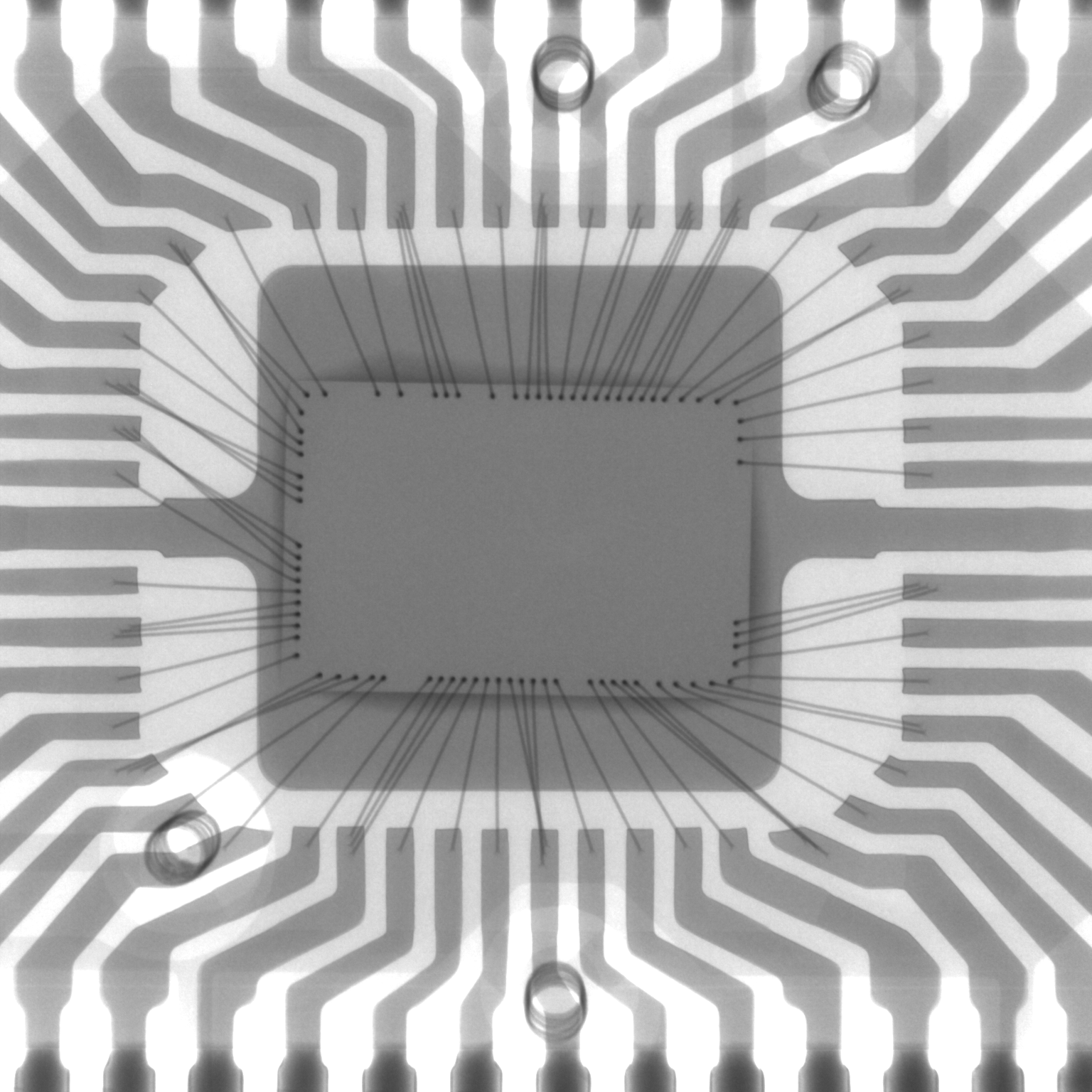

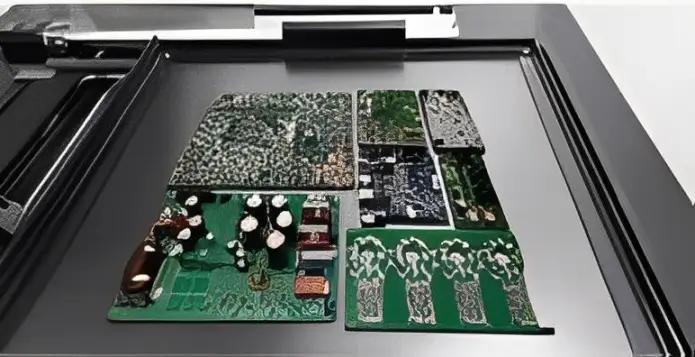

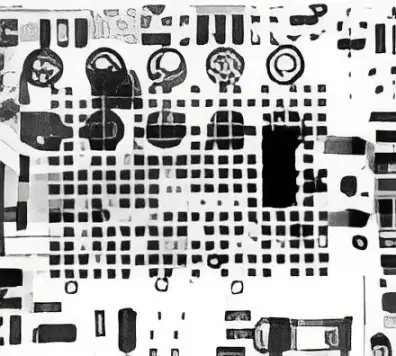

Inspection Images

System Summary
Footprint 1280(W)x1500(D)x1700(H)mm
Machine Weight 1370 kg
Power Supply AC 110/220V, 50/60Hz
Plywood Packing Size 1750(W)x1920(D)x2000(H)mm
Packing Weight 1620 kg
Power Consumption 2.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5µm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85µm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad & Mouse
Max. Loading Area/Weight 610*610mm / 10kg
Max. Inspection Area 550*550mm
Manipulator 6-axis with X/Y/Z1/Z2/T1/T2
