Ray Tech

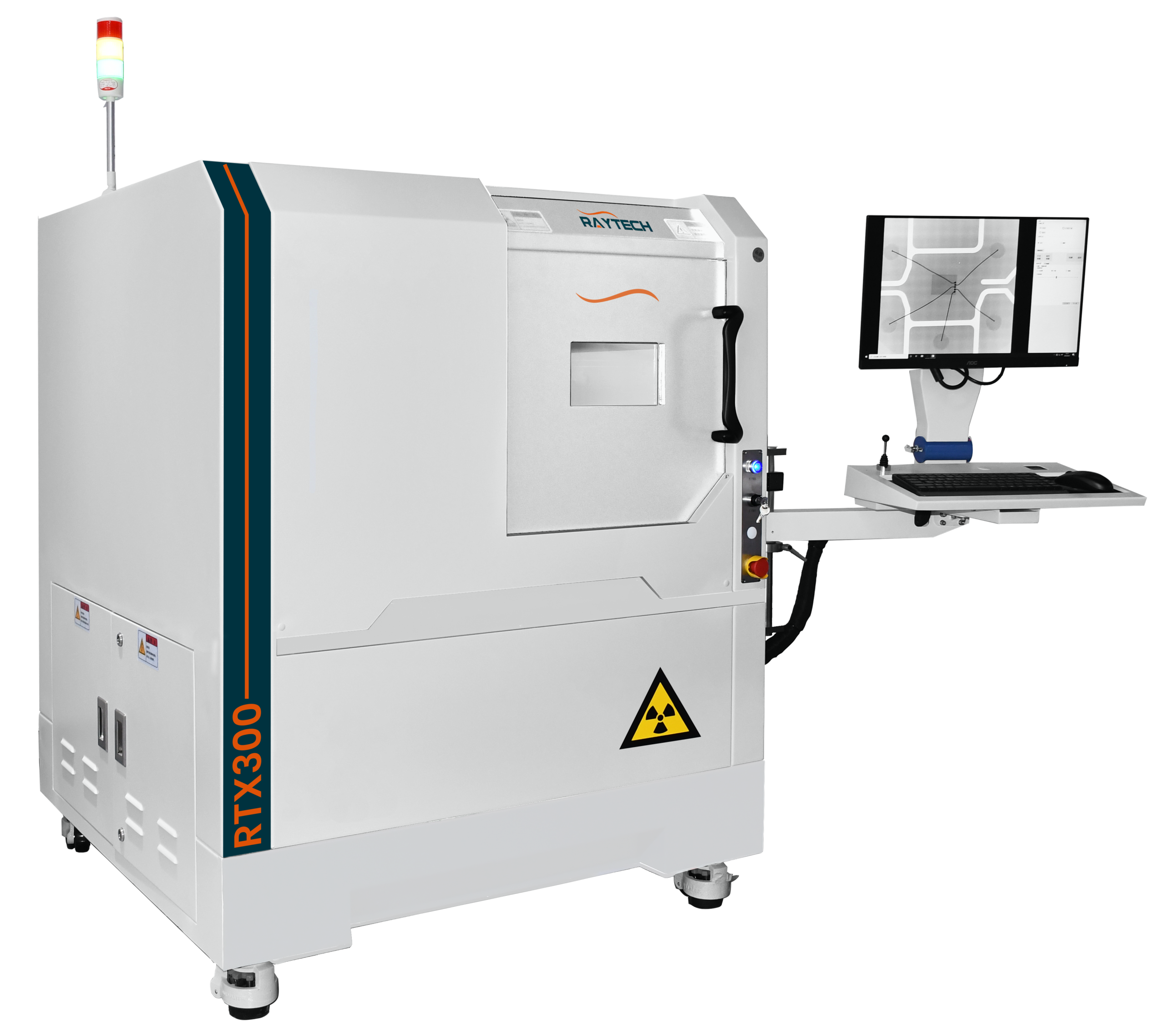

RTX300

RTX300

Category:

Suitable for X-Ray inspection of IC chips and dual-sided DIP components

Manufacturer : Ray Tech (Malaysia) Sdn Bhd

Product Features : It independently developed micro-focus sealed X-ray source and high-resolution FPD, effortlessly delivering high-quality images. The system is equipped with an extra-large object stage and inspection area, and features a 5-axis motion control system, supporting programmable CNC inspection and an optional rotary fixture. The window-based navigation system enables real-time tracking and target point positioning. The rotary lift control platform integrates newly developed information verification, safety identification, and X-ray energy monitoring systems.

Download BrochureRequest A Quote

Description

Manufacturer : Ray Tech (Malaysia) Sdn Bhd

Product Features : It independently developed micro-focus sealed X-ray source and high-resolution FPD, effortlessly delivering high-quality images. The system is equipped with an extra-large object stage and inspection area, and features a 5-axis motion control system, supporting programmable CNC inspection and an optional rotary fixture. The window-based navigation system enables real-time tracking and target point positioning. The rotary lift control platform integrates newly developed information verification, safety identification, and X-ray energy monitoring systems.

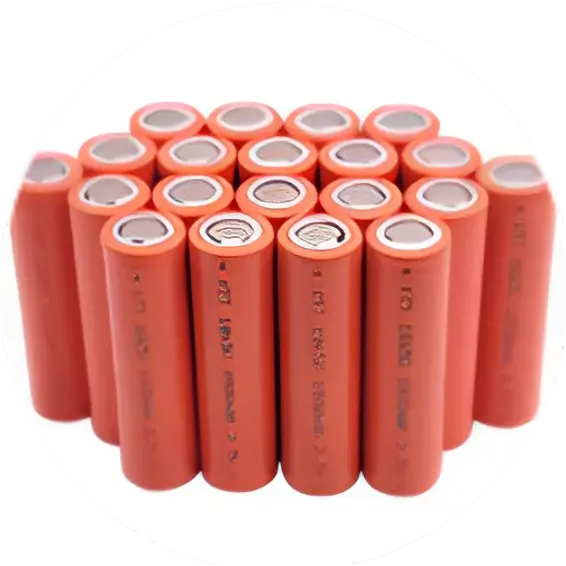

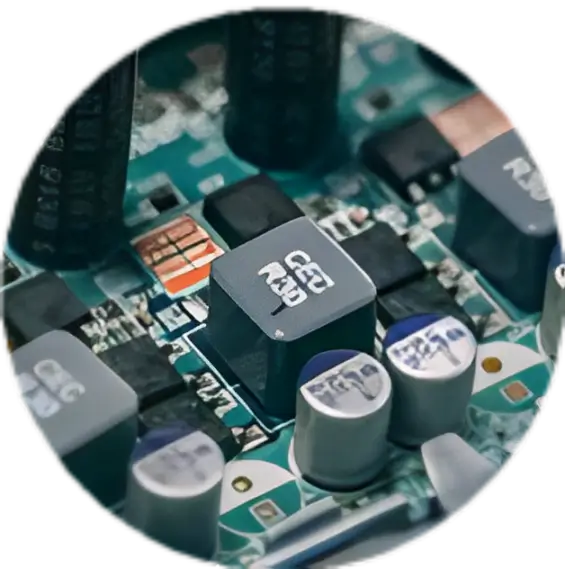

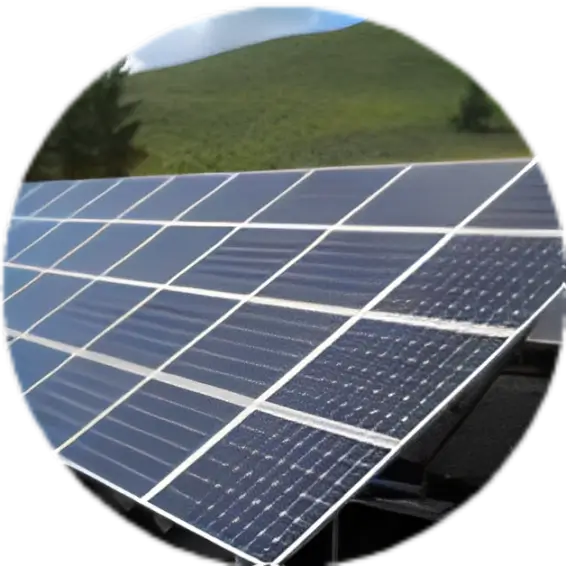

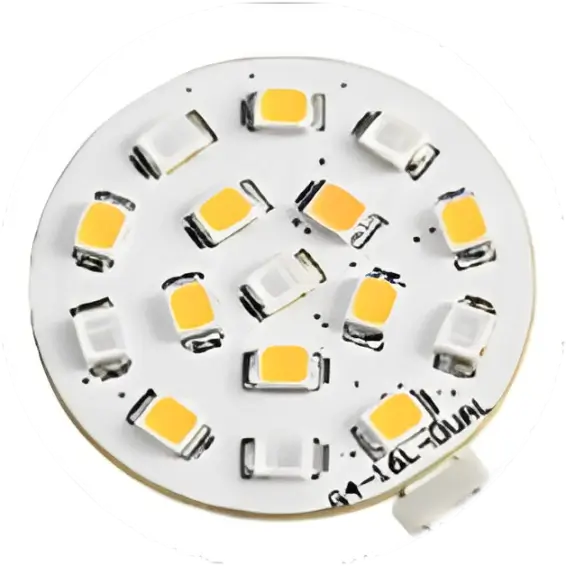

Application Fields

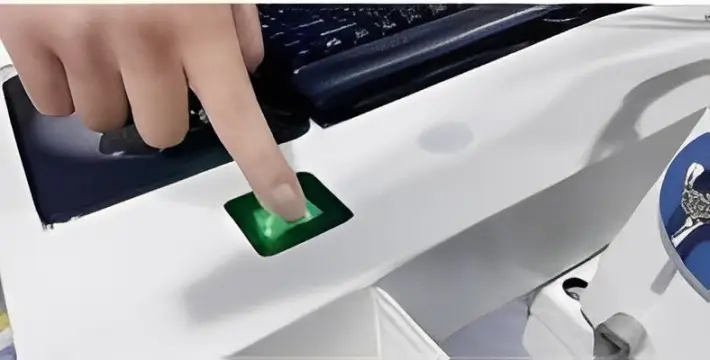

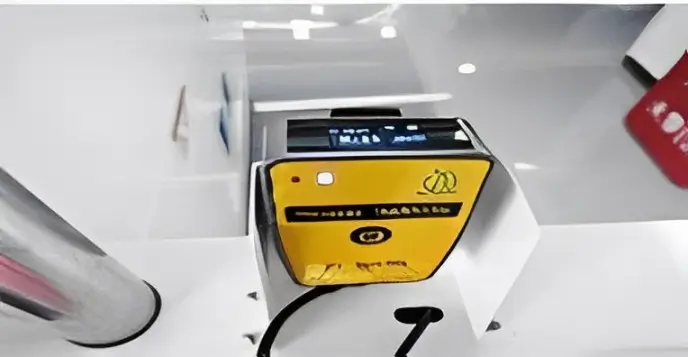

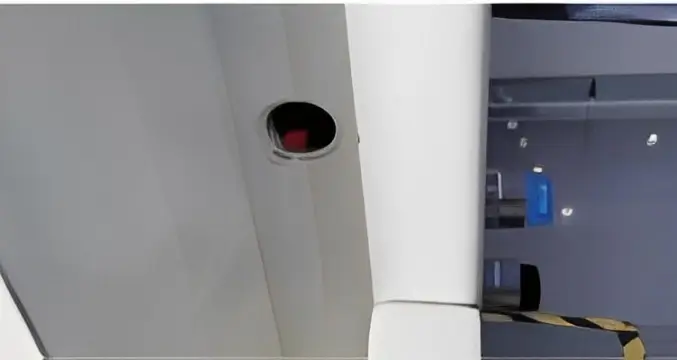

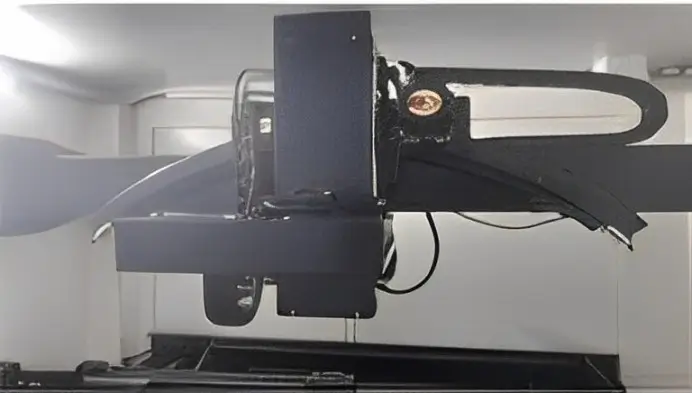

Functions and Features

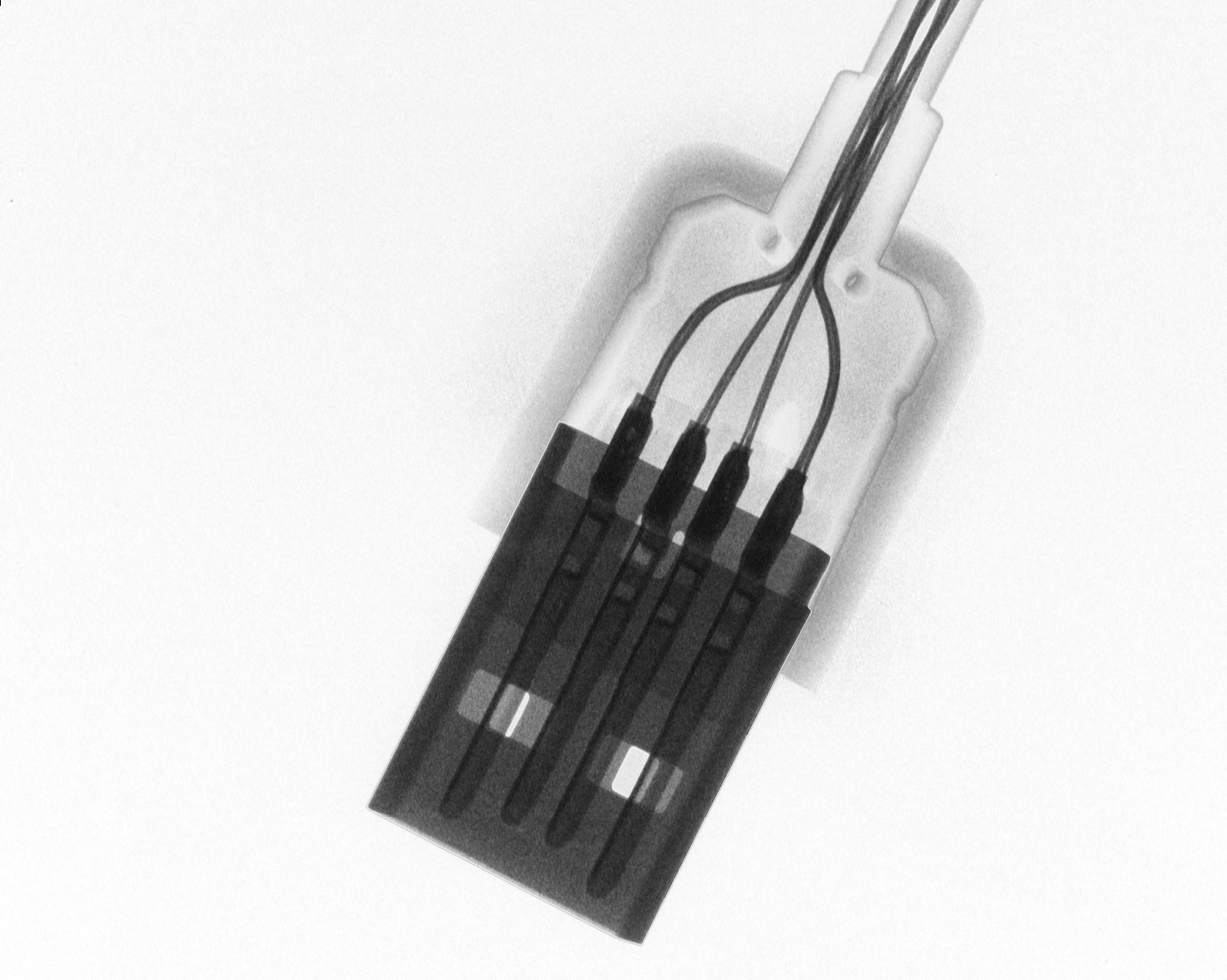

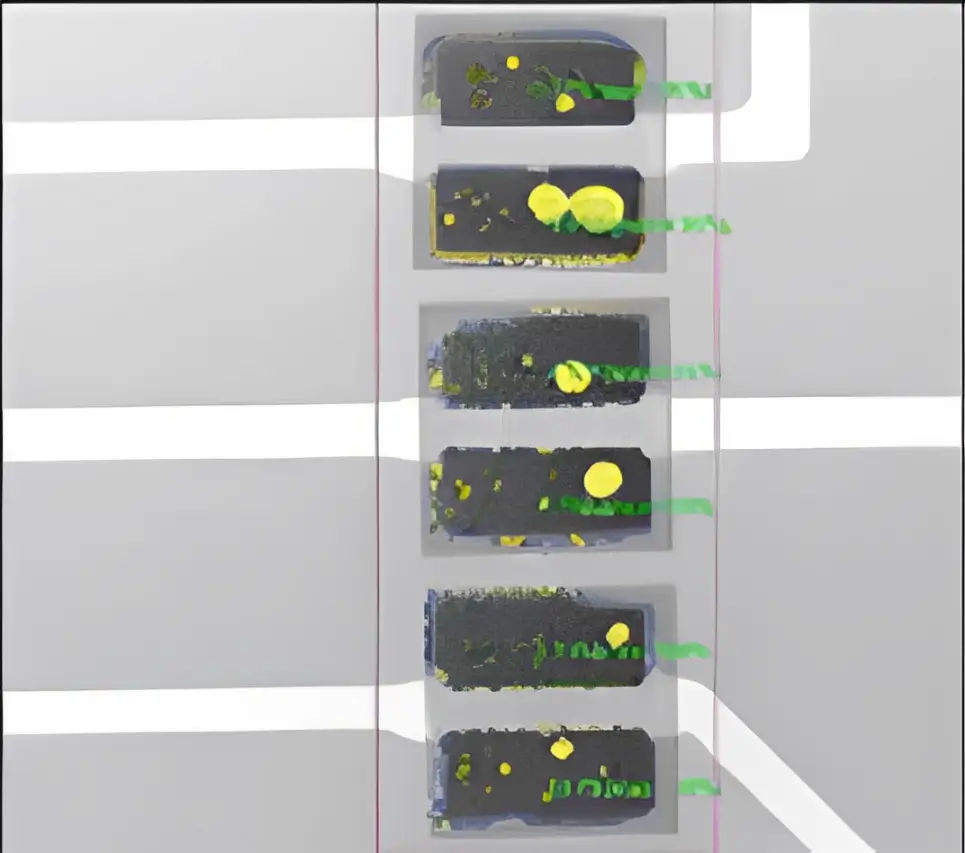

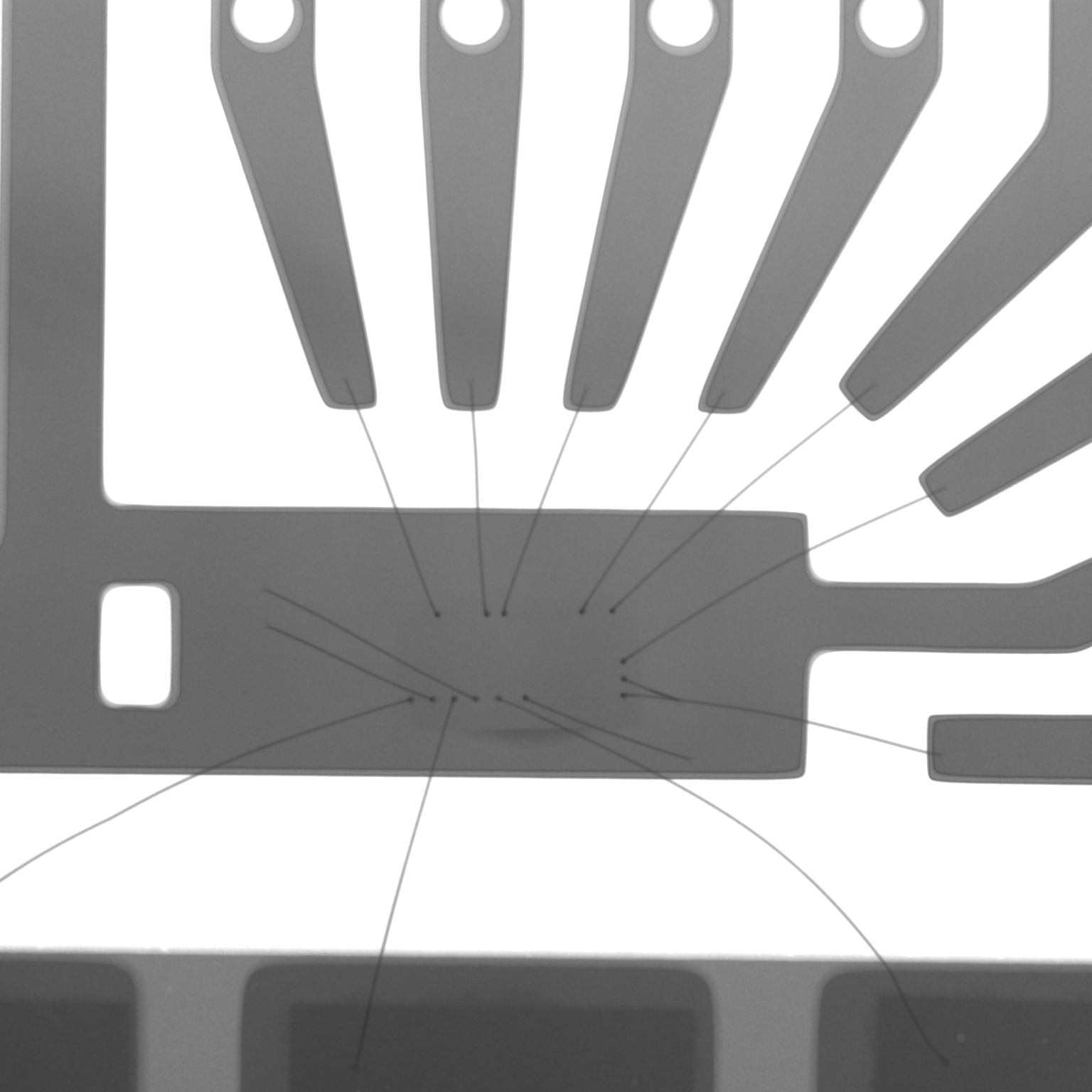

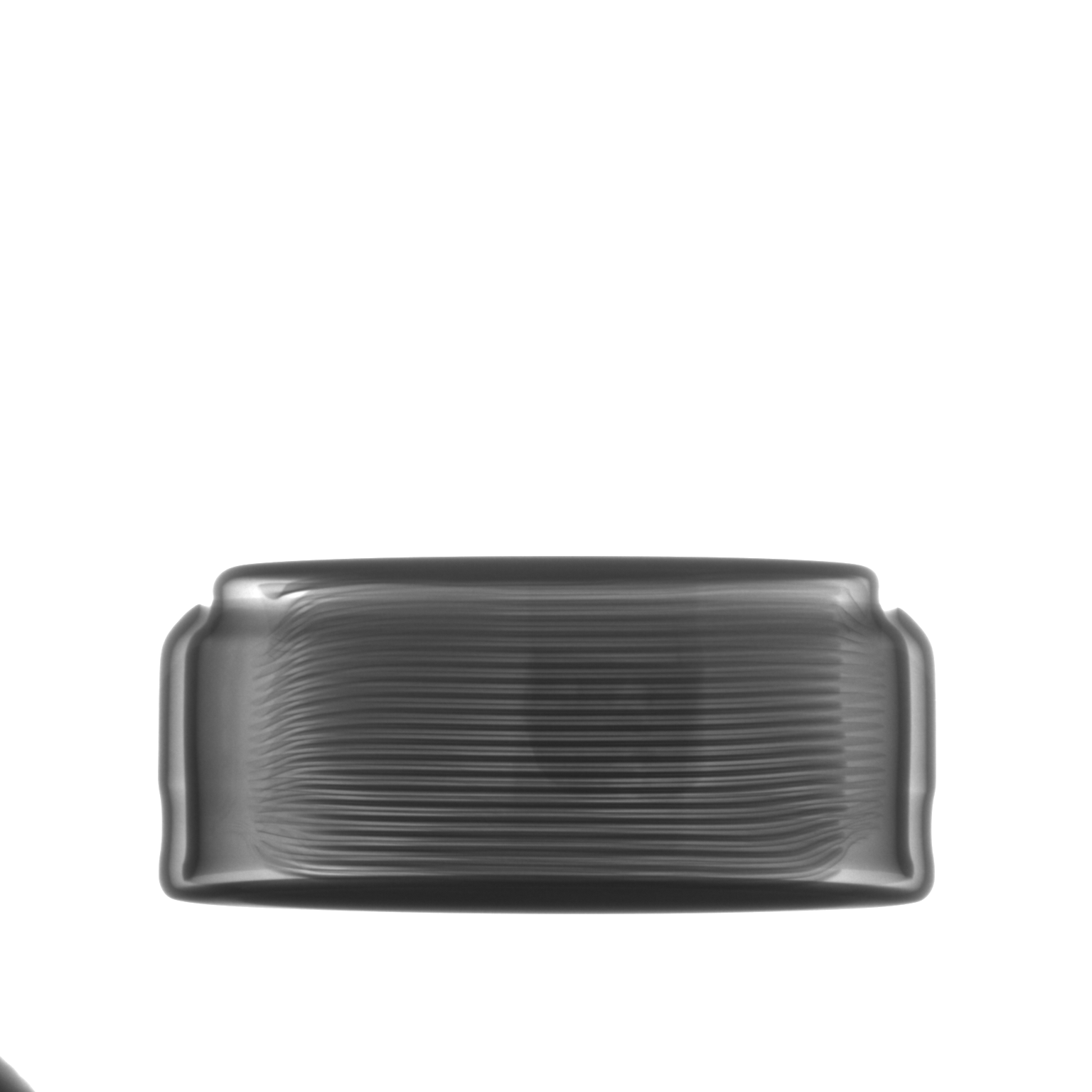

Inspection Images



System Summary
Footprint 1200(W)×1200(D)×1500(H)mm
Machine Weight 1120 kg
Power Supply AC 110/220V, 50/60Hz
Plywood Packing Size 1800(W)×1400(D)×1800(H)mm
Packing Weight 1120 kg
Power Consumption 1.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5µm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85µm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X

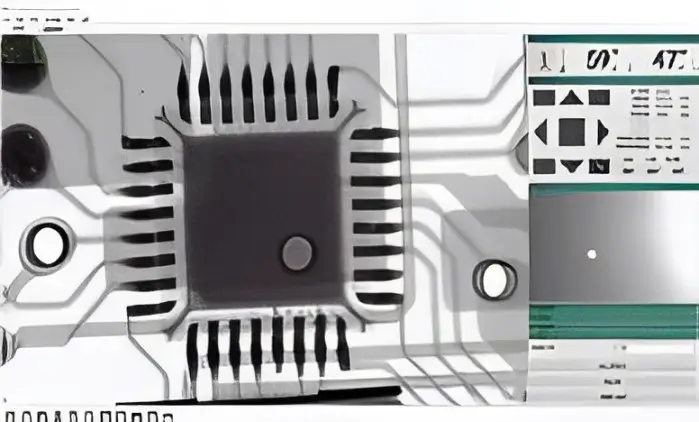

Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad & Mouse

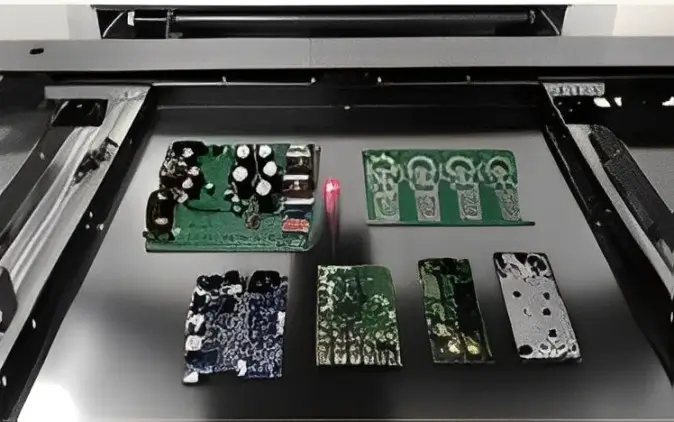

Max. Loading Area/Weight 520*420mm / 10kg
Max. Inspection Area 460*400mm
Tilting Angle ±25°
Manipulator 5-axis with X / Y / Z1 / Z2 / T
