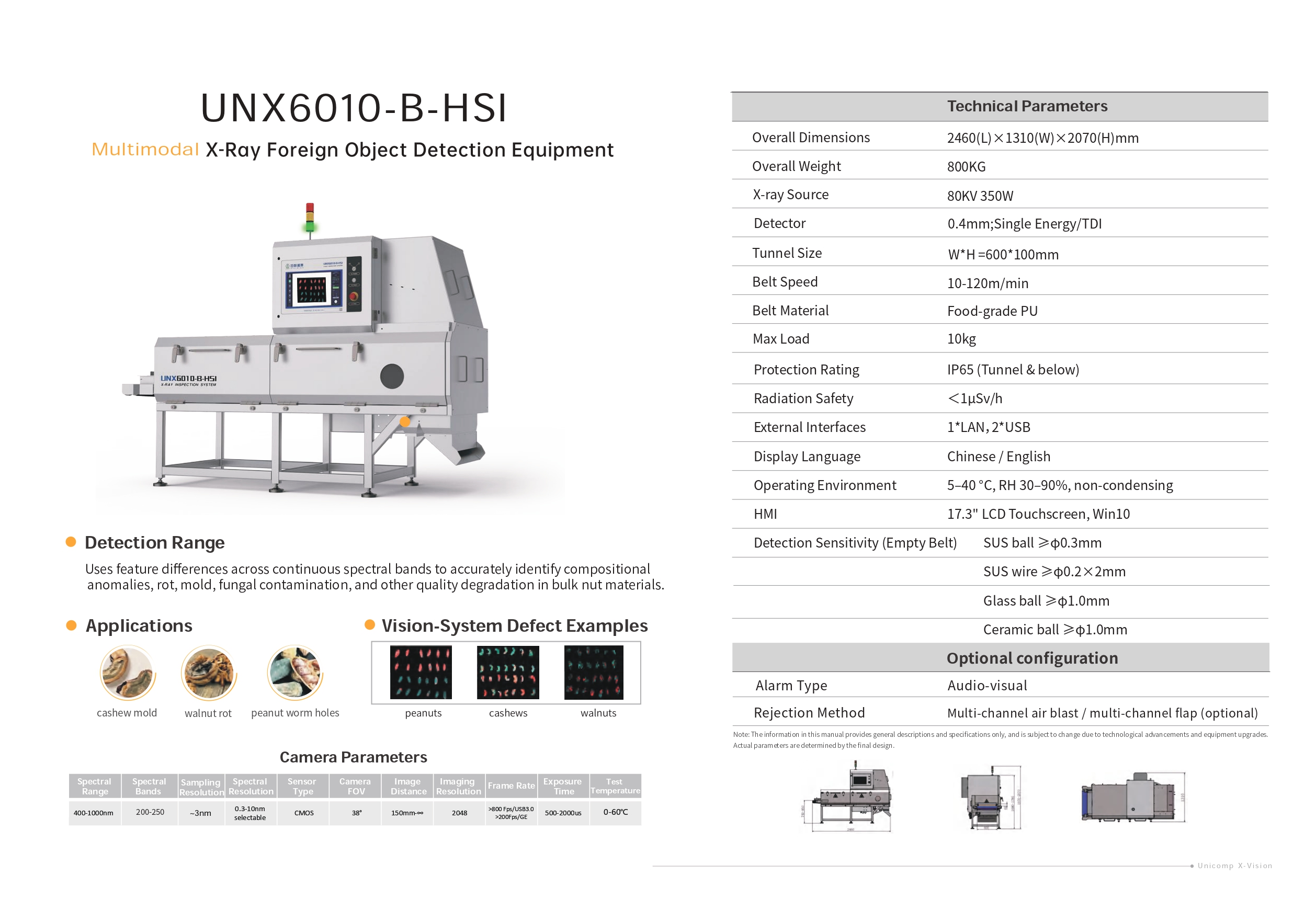

UNX6010-B-HSI

UNX6010-B-HSI

Category: Tag:

X-Ray Foreign Object Detection Equipment

Manufacturer : Unicomp Technology Co., Ltd

Product Features :
The UNX6010-B-R is a bimodal X-ray foreign object detection system combining optical imaging with X-ray to identify surface defects and internal anomalies. It detects low-density foreign objects in tablets, nuts, and bulk materials with AI-supported vision.

Download BrochureRequest A Quote

Description

Manufacturer : Unicomp Technology Co., Ltd

Product Features : The UNX6010-B-HSI is a multimodal X-ray foreign object detection system using hyperspectral imaging to identify compositional anomalies, rot, mold, and fungal contamination in bulk nut materials like cashews, walnuts, and peanuts.



Applications



Vision-System Defect Examples



Detection Range

Uses feature differences across continuous spectral bands to accurately identify compositional anomalies, rot, mold, fungal contamination, and other quality degradation in bulk nut materials.



Camera Parameters

Spectral Range Spectral Bands Sampling Resolution Spectral Resolution Sensor Type Camera FOV Image Distance Imaging Resolution Frame Rate Exposure Time Test Temperature
400-1000nm 200-250 ~3nm 0.3-10nm selectable CMOS 38° 150mm-∞ 2048 >800 Fps/USB3.0; >200Fps/GE 500-2000us 0-60°C
Technical Parameters
Overall Dimensions 2460(L)×1310(W)×2070(H)mm
Overall Weight 800KG
X-ray Source 80KV 350W
Detector 0.4mm; Single Energy/TDI
Tunnel Size W*H = 600*100mm
Belt Speed 10-120m/min
Belt Material Food-grade PU
Max Load 10kg
Protection Rating IP65 (Tunnel & below)
Radiation Safety <1µSv/h
External Interfaces 1*LAN, 2*USB
Display Language Chinese / English
Operating Environment 5-40°C, RH 30-90%, non-condensing
HMI 17.3″ LCD Touchscreen, Win10
Detection Sensitivity (Empty Belt) SUS ball ≥φ0.3mm
SUS wire ≥φ0.2×2mm
Glass ball ≥φ1.0mm
Ceramic ball ≥φ1.0mm
Optional Configuration
Alarm Type Audio-visual
Rejection Method Multi-channel air blast / multi-channel flap (optional)
Note: The information in this manual provides general descriptions and specifications only, and is subject to change due to technological advancements and equipment upgrades. Actual parameters are determined by the final design.
