Ray Tech

RTX100L

RTX100L – Bagged Food X-ray Foreign Object Detection Equipment

Manufacturer : Ray Tech (Malaysia) Sdn Bhd

Product Features : It is used to detect foreign matter contaminants in small bags for lightweights products.

Download BrochureRequest A Quote

Description

Manufacturer : Ray Tech (Malaysia) Sdn Bhd

Application : Used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.

Product Features : It is used to detect foreign matter contaminants in small bags for lightweights products.

Key Features
1. Easy to Operate: one button start&stop, optional default product
2. Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
3. Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
4. With deep learning of AI, the detection sensitivity reaches the industry’s highest Intelligent algorithm standard

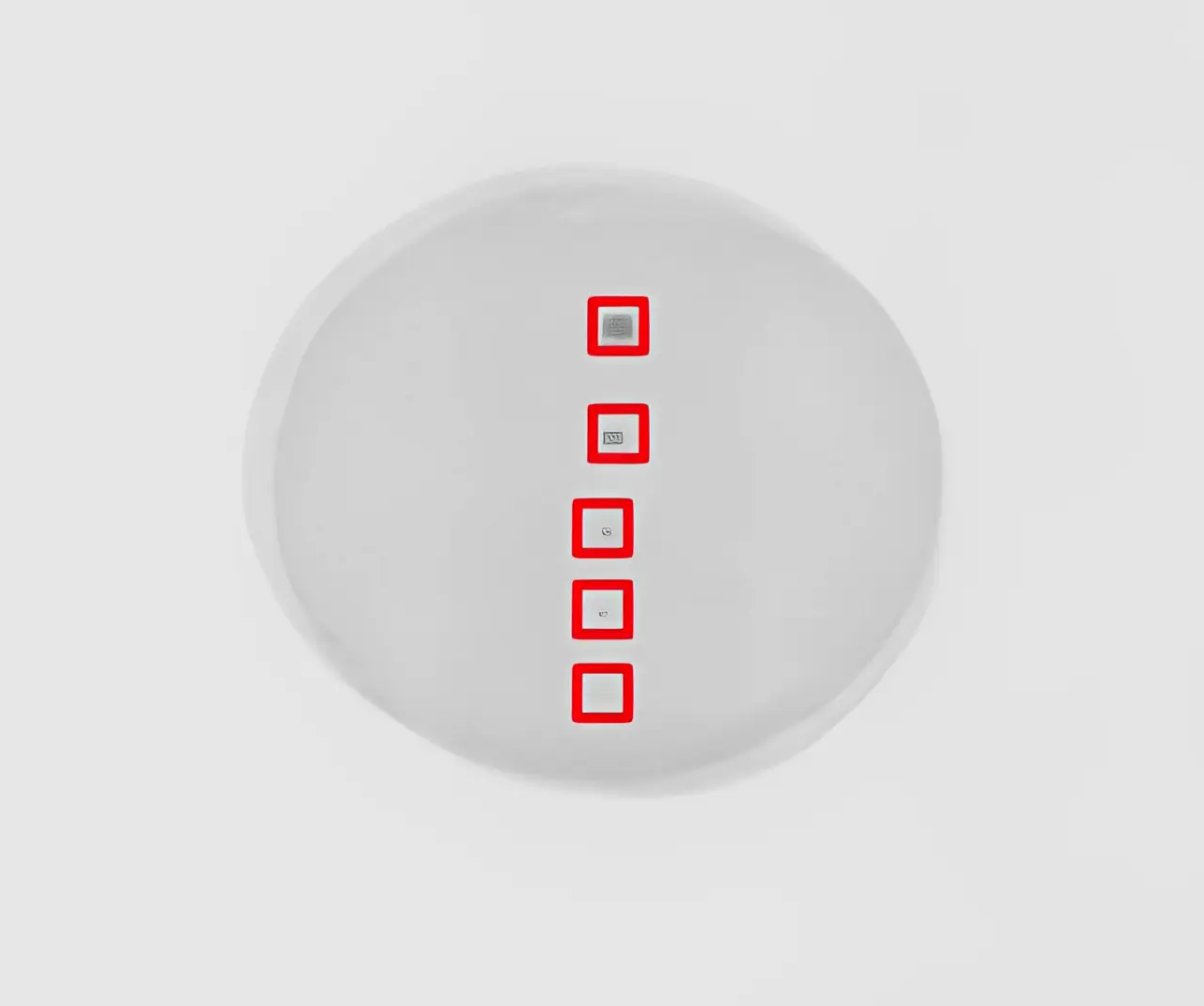

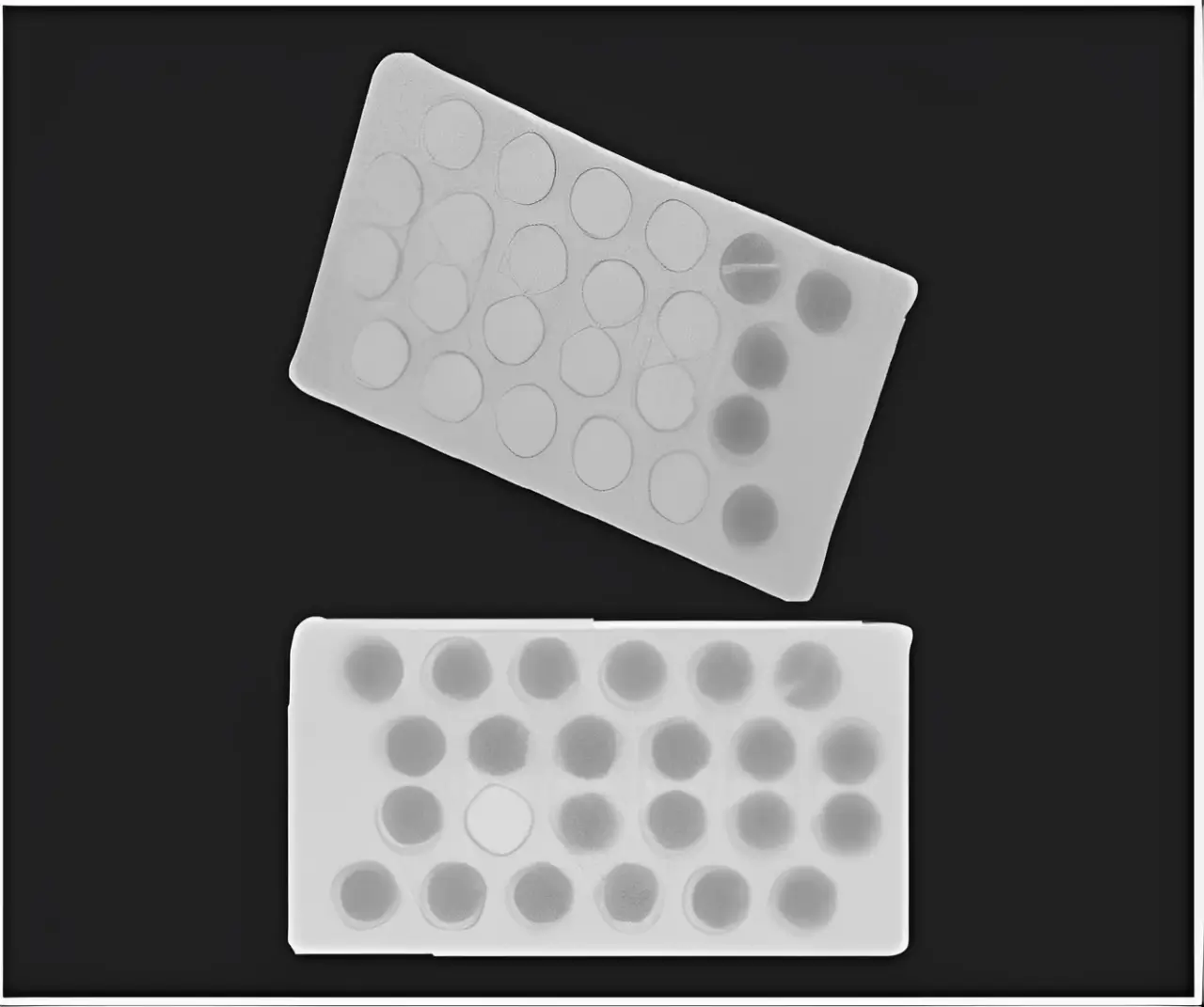

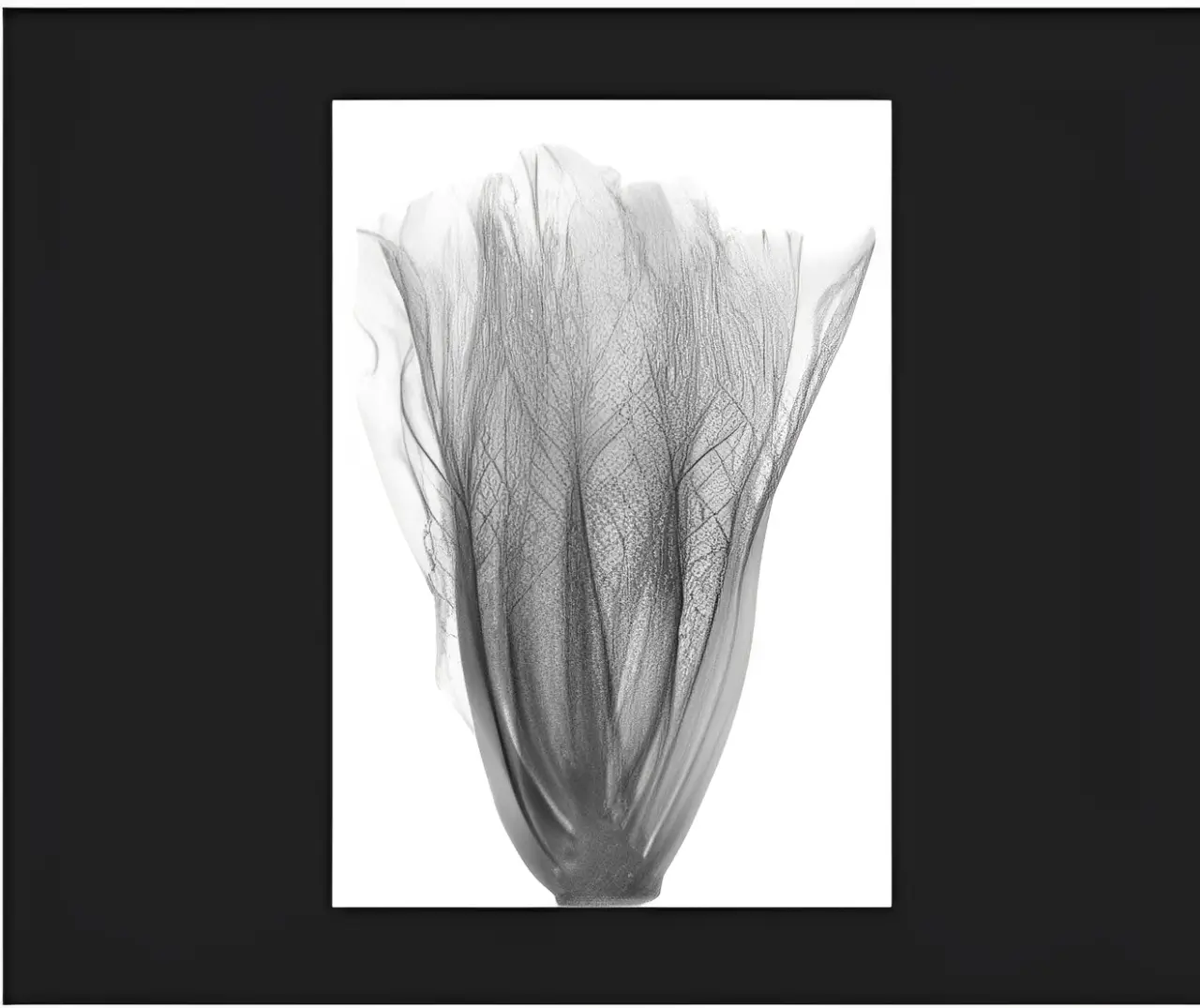

X-Ray Images



Equipment Features
Dimension 1168(W)×985(D)×1510(H)mm
Machine weight 500kg
X-ray tube 80-120kV/210-480W
Power Supply AC 110/220V, 50/60Hz
Max. Loading weight 10kg
X-ray detector Diode array with 0.4mm resolution
Channel size 400mm(W)×150mm(H)
Conveyor Speed 10-60M/min
Heavy load Conveyor Speed 10-40M/min
Operating Range 10°C to 40°C (50°F to 104°F), 30% to 90% relative humidity non-condensing
Capability
Detection Accuracy SUS BALL ≥ 0.3mm
SUS wire ≥ 0.2*2mm
Glass ball ≥ 1.0mm
Ceramic ball ≥ 1.0mm
System Computer
Communications 1*LAN, 2*USB
Industrial PC 17″ LCD touch screen; Windows 10
Optional Configuration Rejector
Sound-Light alarm, flipper, dropout, air jet, pusher, chute, shuttle
Other
Ingress protection Conveyor: IP66, Others: IP65
X-Ray Safety <1µSv/h
